Main page for LabFNSN aa2015-2016

Links to example code and data

Scintillator working point optimization (efficiency for m.i.p.)

Root macro for efficiency plateau fit
Use it in root (tested on Version 5.32/00) with
.x fitPlateau_showRate.C("1atLS1_doppie_LS3_LS7")

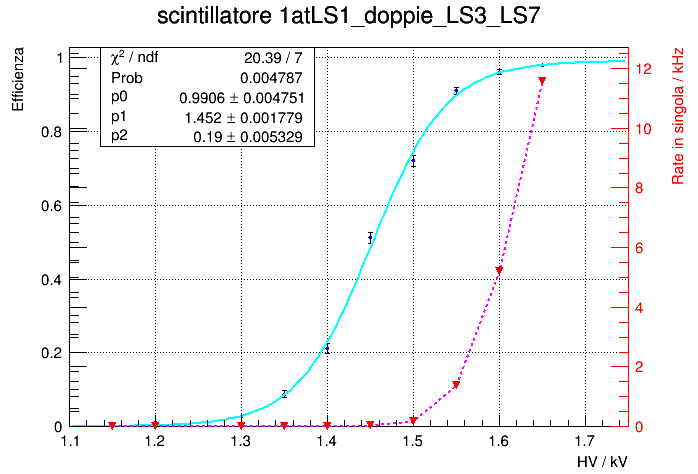

to use input data in a file named hv_plateau_scint_1atLS1_doppie_LS3_LS7.dat with content as in the example below. Look here at the result.
For root version 6 (and previous) use this.

Example of input data for efficiency plateau fit hv_plateau_scint_1atLS1_doppie_LS3_LS7.dat
Each row contains:
HV (in kV), n. of reference events, n. of successes, total n. of counts of the device under test, time span of the measurement (in s).

PMT calibration: single photo-electron spectrum and absolute gain vs HV determination

Example of data file from the DAQ (the explanation of the content is given in the header of the file)

Collection of results

Muon lifetime measurement telescope:

Setup and mapping here (since May 2016).
Efficiency plateaux of the scintillators measured in March 2016 (S.Spagnolo)
Efficiency plateaux of all scintillators May 2016 (S.Spagnolo)
Stability of some plateaux May 2016 (S.Spagnolo)

PMT s.p.e. spectrum:

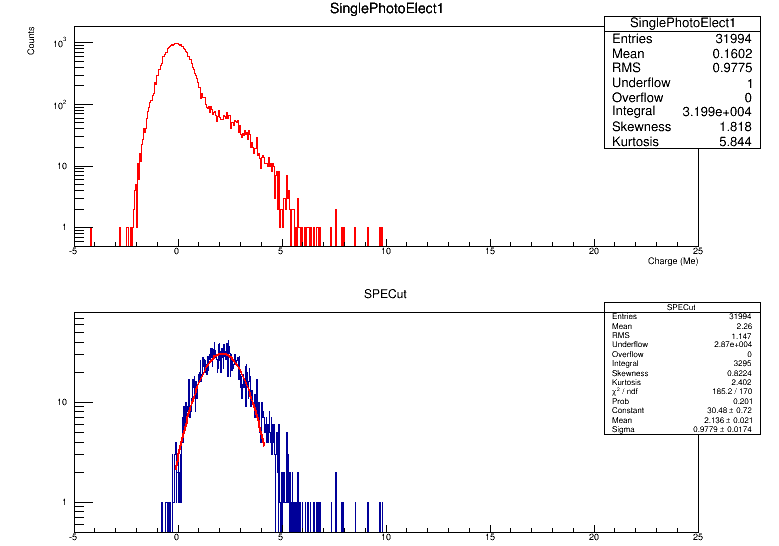

Example of a single photo-electron spectrum April 20, 2016 (R. Coluccia)

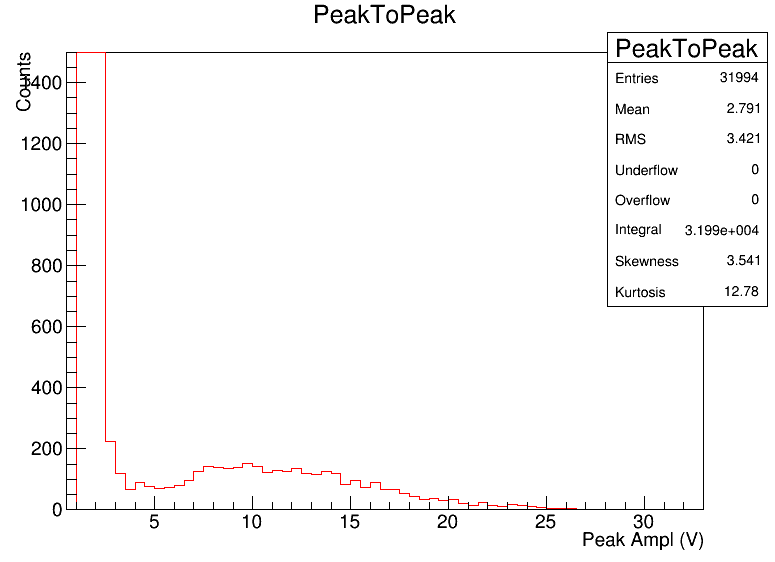

Example of the distribution of peak to peak voltage in s.p.e. data taking conditions. April 20, 2016 (R. Coluccia)

Data

Muon lifetime measurement: data and calibration runs

All data and calibration runs collected in 2016 are here.

PMT s.p.e. spectrum

Data collected in April 2016 are here.
